Circular Scratches on CDs and DVDs

Types of Scratches on Optical Discs: Radial or Circular Scratches

Circular scratches and other types of scratches are the most common problems with optical disc media such as compact discs or CDs or digital versatile discs or DVDs.

Scratches may or may not affect how a disc plays and ultimately it depends on whether the error correction system associated with optical disc technology can handle the problems generated by a scratch or scratches. To simplify things, the type of scratch can fall into one of two categories: a radial scratch or a scratch that is circular. A radial scratch is perpendicular to the direction of play (like a spoke in a bicycle wheel) and is less problematic because the error correction system can deal with these scratches fairly easily.

The errors created because of the radial scratch are random in nature as the disc plays and these are dealt with efficiently by the technology. Circular scratches follow the direction of play of the disc. Errors created when a disc is played with small circular scratches are a challenge for the error correction system because there is a lot of damaged data in sequence, but generally the errors can be corrected. Large scratches in the circular direction are much more problematic and often lead to playability problems or complete disc failure.

Below you will find screen shots from the error analysis of a DVD disc with no scratches, radial scratches, and circular scratches in order to see the effect that scratches have on the playability or readability of optical media.

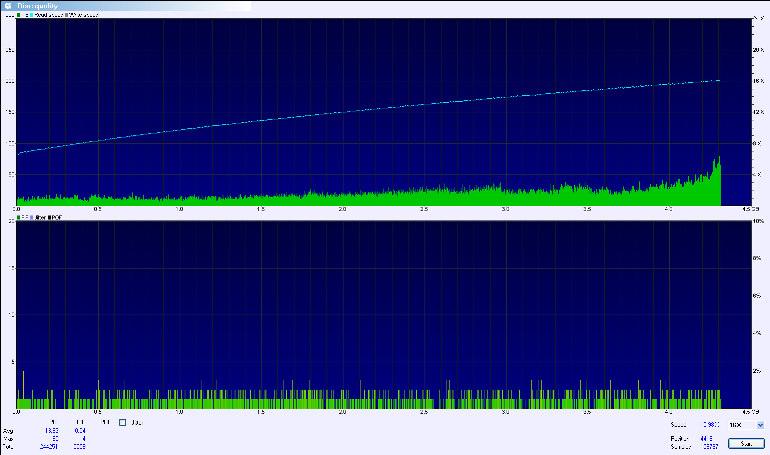

Error analysis of a DVD disc with no scratches

Error analysis of a DVD optical disc with no scratches on the base side of the disc.

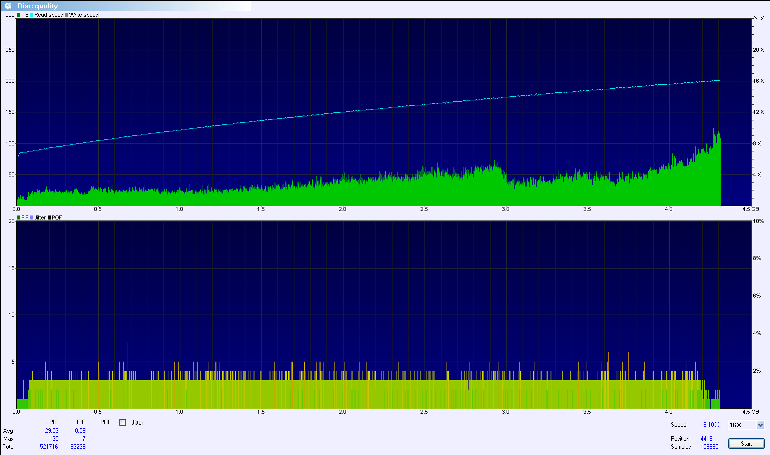

Error analysis of a DVD disc with a radial scratch

As you can see, there is a slight increase in errors when comparing this screenshot with the one above (i.e. no scratch analysis). Both the top pane and bottom pane of the screenshot indicate different types of errors and in both cases the radial scratch has caused a slight elevation in the amount of errors.

Error analysis of a DVD optical disc with a radial scratch on the base side of the disc.

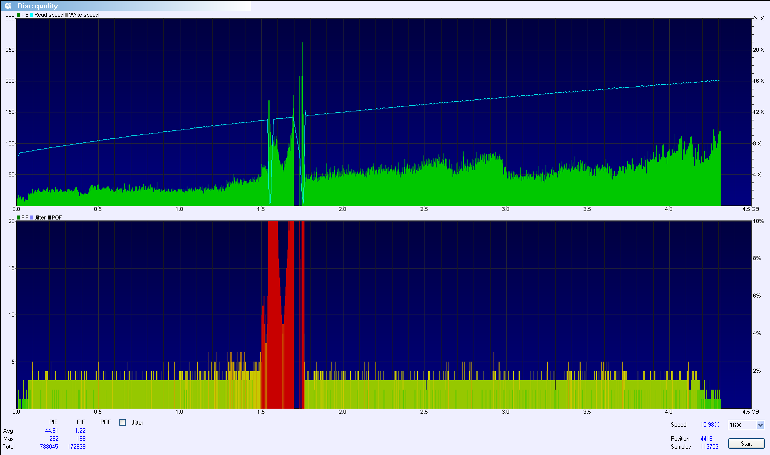

Error analysis of a DVD disc with a circular scratch

As is clearly evident from the screenshot below, the circular scratch has caused a large spike in errors. In fact, the red section in the bottom pane indicates a critical state of uncorrectable errors. Even though the circular scratch was the same length as the radial scratch in this sample, the effect on the disc was signficantly different and much more detrimental.

Error analysis of a DVD optical disc with a circular scratch on the base side of the disc.



Scratches Generally Caused by Poor Handling

The types of CD or DVD optical disc scratches discussed above are generally caused by poor handling. An example of poor handling is not storing the discs in jewel cases when they are not being used. When left on desks or piled on top of each other the discs often get scratched. Storing discs in paper or plastic sleeves can also cause circular or radial scratches. These occur as the discs are inserted or removed from the sleeves and the disc surfaces rub against the sleeve and/or abrasive debris within the sleeve. Cleaning, such as wiping with an abrasive cloth often causes scratches. Even if the proper soft wiping cloth is used, scratches on CDs and DVDs and other optical media may still occur if debris gets caught under the wiping tissue. Wiping should be avoided as much as possible and only used when necessary.


Large Circular Scratches Caused by the Equipment

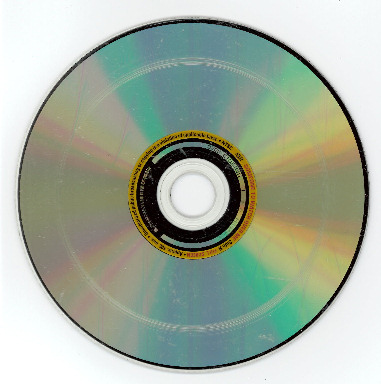

The image shows scratches that are a little bit different than poor handling type scratches. These scratches, often in the form of concentric circles, occur inside the CD or DVD player or drive.

Circular scratches on a CD caused by the drive.

There are several possibilities as to why these scratches can occur. First of all the lens in the drive is very close to the disc surface when a disc is spinning and being played or read. The lens does move up and down slightly. If there is two much vibration or the equipment is jarred while the disc is being played then the lens may contact the disc and scratch it. If the disc is slightly warped, this may also lead to lens and disc surface contacting each other. Another possibility is that equipment does get dirty. Debris on the lens can lead to contact with the spinning CD or DVD and the formation of the scratches in a circular pattern as illustrated in the image. Finally, other debris on the tray of the drive or player may be large enough to scratch the disc while it is spinning. Therefore, if these scratches appear on your optical disc, it could be that the drive is contaminated with debris, there is debris on the lens of player or drive and a lens cleaning disc is required, the disc is warped to some degree, or the drive is malfunctioning and allowing the lens or other parts in the drive to contact the disc.



Fix Scratches that are Circular
If you have a disc with the circular scratches shown in the image, then the only plausible fix is to use scratch repair equipment. This equipment sands the plastic base of the disc to the level of the scratches and then repolishes the disc. This fix for scratches in a circular pattern does not always work because the scratches are often severe, but is a better option than the other scratch fix techniques mentioned such as liquid polishes and liquid fillers.
