What is a Floppy Disk?

What is a floppy disk? A floppy disk or floppy diskette is a removable magnetic disk storage medium that can store digital information. Floppies were the main removable storage media for personal computers until optical discs or flash media were introduced.

Floppy disks are generally found in three sizes: 8 inches, 5.25 inches, and 3.5 inches. Each of the sizes may have been available in a variety of formats such as single-sided or double-sided, single density or double density, etc.

Layer Structure of a Floppy Disk

To further examine the what is a floppy disk question it is important to examine the construction of this type of format. The floppy diskette structure is shown in the schematic cross-section diagram below. There are two principle layers in the structure.

Floppy disk or diskette cross-section structure. The polyester base layer makes up most of the thickness and is coated on both sides with a binder layer containing magnetic oxide particles.

Most of the thickness of floppy diskettes is a polyester plastic base material. The base is thin and flexible and it is because of this property that the term floppy is often used to describe this storage format. On the other hand, hard drives contain rigid disks that do not flex and therefore these are often referred to as hard disks.

The flexible plastic base on the floppy diskette is usually coated on both sides with a very thin polymeric material referred to as the binder. The role of the binder is to hold the magnetic oxide particles on the base of the disk and to protect the magnetic material from damage. Additives, such as lubricants are often added to the binder so that the floppy disk functions properly.

Because in the floppy disk format the magnetic heads of the floppy drive are in contact with the disk surface when the disk is read or written, a lubricant is added to the binder surface. This lubricant layer acts to reduce friction and wear of the binder material and the magnetic heads in the drive. It is the magnetic particles that hold the magnetic signals on the disk and this is where the digital information is stored. More information on what is a floppy disks capacity can be found at the floppy disk capacity page.

What is a Floppy Disks Construction and Housing

For the 8 and 5.25-inch formats, a circular hole of about 2.5 cm or one inch in diameter is cut in the center. The hole is present so that the disk can fit firmly in the drive platter so that the disk can be spun. For the 3.5-inch disk, the hole has a metal hub glued onto the disk and thus, it sits a little different in the drive than the other floppy diskette formats.

Floppy disks are not used as bare disks. They are housed in flexible vinyl jackets for the 8 and 5.25-inch formats and in a rigid plastic jacket for the 3.5 inch format. The vinyl jackets have openings so that the diskettes can be read, whereas the rigid plastic jacket has a sliding gate that opens in the drive to expose the magnetic floppy disk surfaces.

The vinyl jackets have a notch on the side. This is the write-protect tab and as long as the notch is present, information can be written to or erased from the disk. To prevent additional writing on the disk or files from being erased, a piece of tape can be used to cover the write-protect tab.

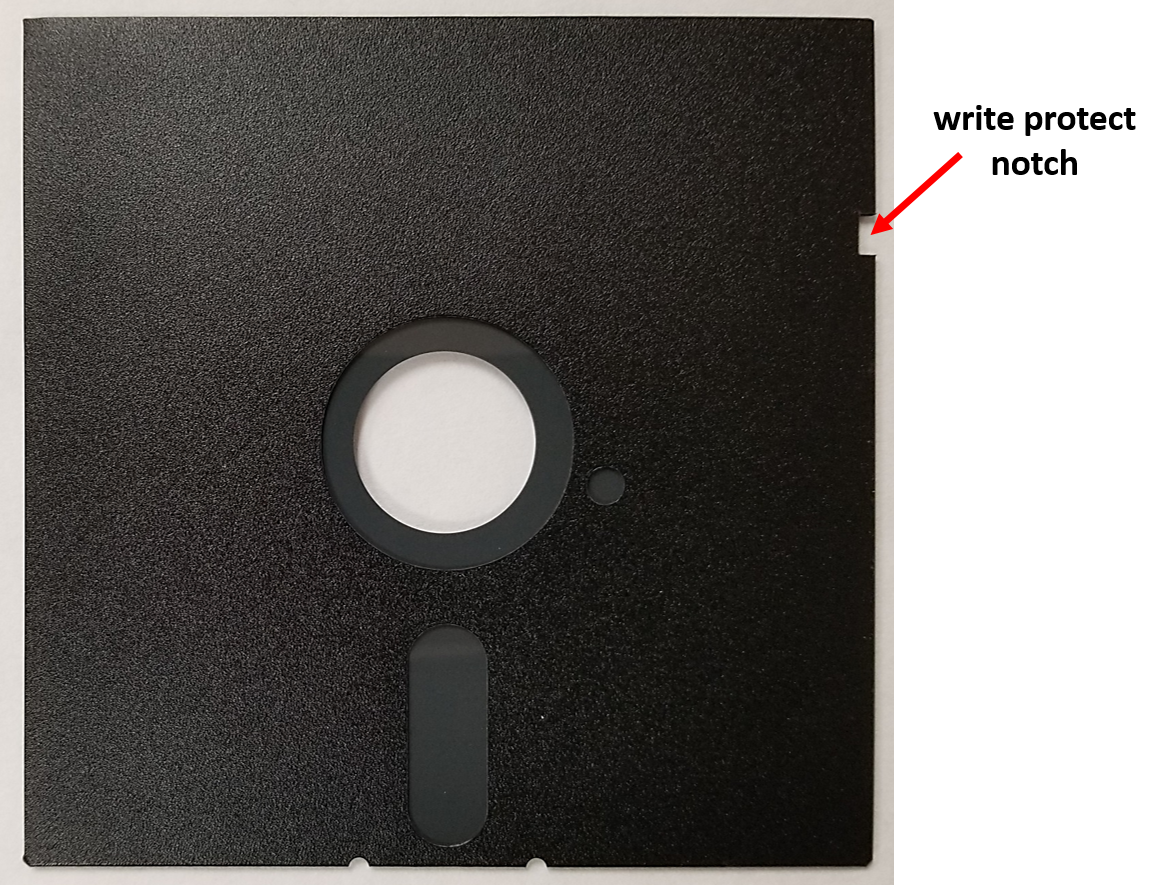

Write protect notch in a 5.25-inch floppy disk jacket. To protect the disk from being erased or written to, this notch is covered with adhesive tape.

For 3.5-inch floppy disks, the plastic jacket has a little plastic piece that you can slide up or down in order to move the disk from a non-write protected state to a write protected state.

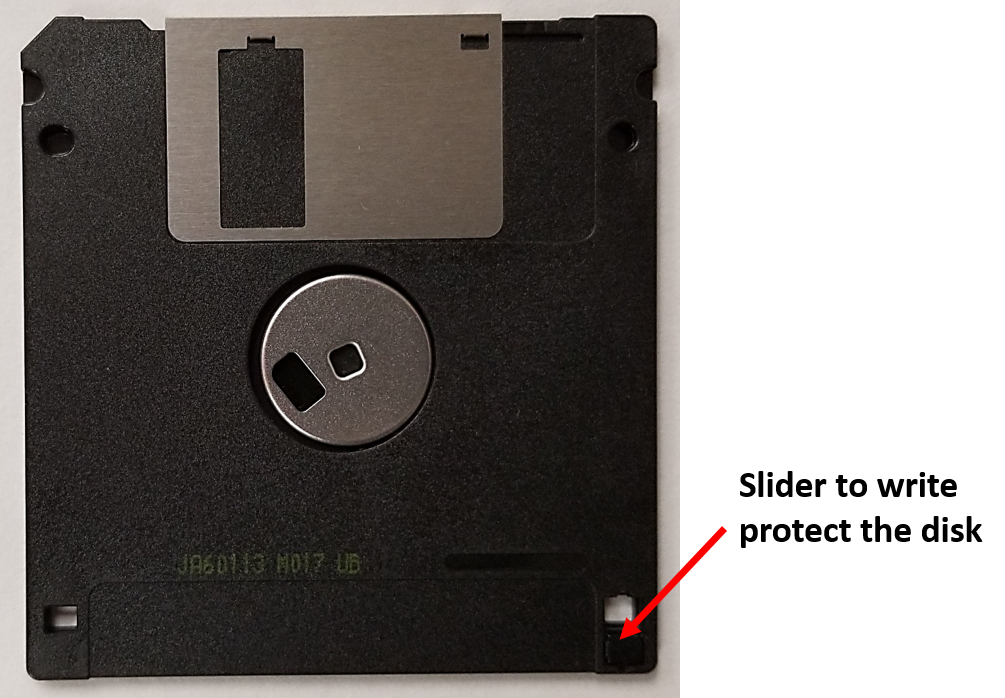

Write protect slider in a 3.5-inch floppy disk jacket. To protect the disk from being erased or written to, this notch slides and covers up the hole.

What is a Floppy Disks Access Speed?

The data access speed for floppies is slow when compared to rigid magnetic disks or rigid optical discs. This is because there is a limit in terms of how fast the floppy disk can be spun. Spinning a floppy disk too fast will result in flexing of the disk or warping as it spins and this will result in poor magnetic head to diskette surface contact and read errors. There is also a limit for rigid systems. For example, for CDs, the limit is 52 times normal speed. Beyond this, the CD will start to flex as well, which makes accurate reading of the data difficult.

Floppy Disk Longevity

What is a floppy disk's longevity? A floppy disk is a format that is not used often nowadays. New computers do not come equipped with floppy drives and the demands of high storage capacities for files being generated nowadays make this format irrelevant. Older disks may have degraded and may not readable due to errors. In fact, the average lifetime for this time of media is 5 to 15 years with storage under room temperature and relative humidity conditions. Because most diskettes in collections will be greater than 15 years old and the drives to read the disks may no longer be available or may not be functioning, it is best to copy the information from the disks onto another storage medium as soon as possible.

3.5-inch and 5.25-inch floppy diskettes for data storage. Because of the short longevity of these floppy disks, it is best to transfer the information off them and onto another move viable format.

There is no point in storing the original diskettes long-term under controlled temperature and relative humidity conditions if successful copies have been made. Due to the unavailability of floppy disk drives in the near future and increased degradation of the media, the disks will not be able to be read in the future.

After the copying has been performed, there is still the issue of being able to open the files since the file types or software used to open the files may not be available anymore. This is a common problem with all older file formats, especially those not widely used.
